JUKI Ricoh Ri100 Direct to Garment Printer

Also Available in Our Retail Store
Call for More Information or Special Promotions

Home Crafter Bundle (Standard)

• RI100
• A4 Platen
• Sets of Ink
• Sets of Cleaning Fluid

Business Start Up Bundle

• RI100
• RH100
• A4 Platen
• A5 Platen
• Sets of Ink
• Sets of Cleaning Fluid

Professional Bundle

• RI100
• RH100
• (2) A4 Platen
• A5 Platen
• (2) Sets of Ink
• Sets of Cleaning Fluid

Machine Manuals

The RICOH Ri 100 revolutionizes the world of direct-to-garment (DTG) printing. This portable printer features an all-in-one design making it easy to create beautiful products such as t-shirts, tote bags, and more in minutes. Additionally, you may create and print one-of-a-kind designs and patterns on fabric to create unique quilts, table runners, and so much more! With little to no setup time, your designs will come to life in minutes.

Whether you are printing at home or at events, the RICOH Ri 100 is the ideal choice!

*The RICOH Ri 100 is a CMYK-only printer designed for use with light-colored garments only.

Compact and Portable

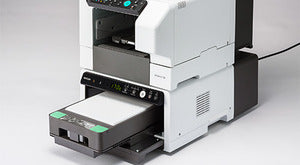

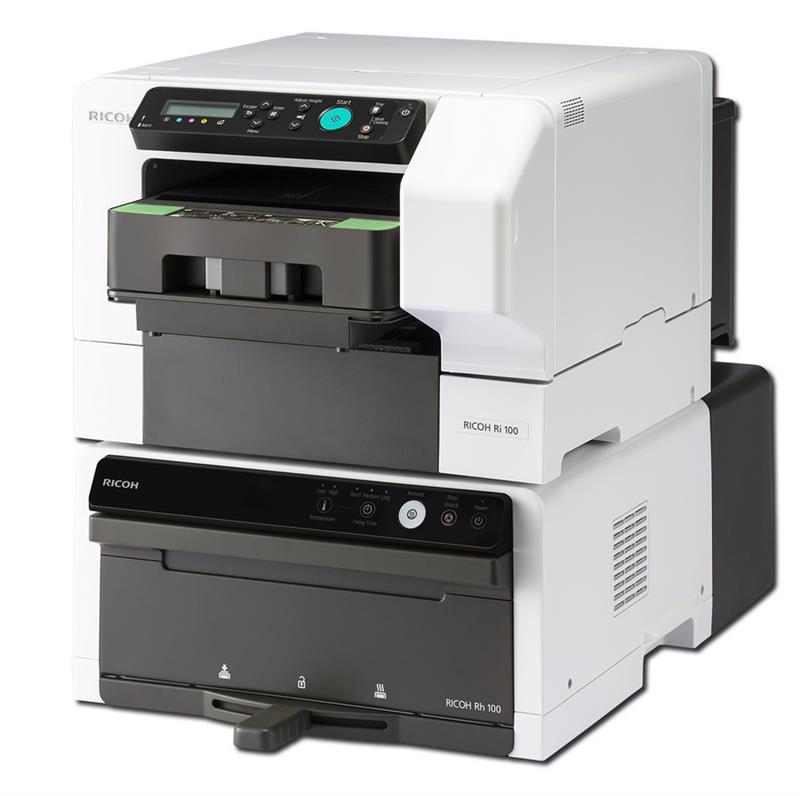

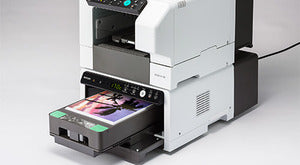

The RICOH Ri 100 can fit into a space as small as 15.7” wide x 27.5” deep, making it one of the smallest DTG printers. The printer and its finisher can be stacked to maximize functionality without sacrificing space.

High Quality Images and Products
Achieve superior prints thanks to RICOH’s inkjet technology, which prints directly onto the fabric. Preserve the look and feel of garments while still maintaining a high level of image vibrancy.

Easy Design Software
RICOH Design Software lets you easily edit and import images before printing. Use the desktop software, convenient iPad app, or simply send prints from your smartphone with ease.

Safe and Effortless Technology
The RICOH Ri 100’s intuitive design requires no prior experience to print and finish prints, with safety as a top priority. The inks adhere to the fabric safely and periodic maintenance is carried out through a simple process (automatic and semiautomatic).

Instructions

1. Choose the Design Use the accompanying software to choose the design. Set the printing mode based on the fabric used.

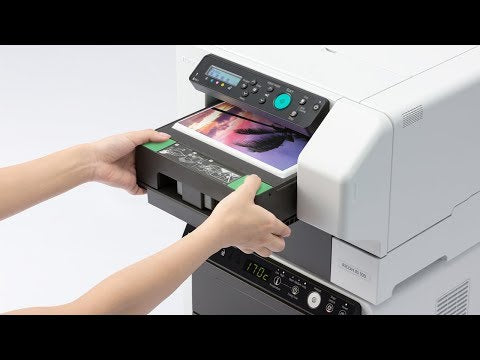

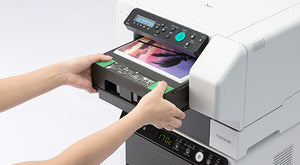

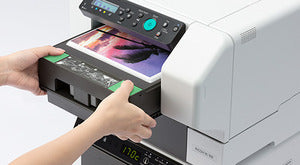

2. Set the Fabric Set the T-shirt or bag in the tray. Even beginners can accomplish this task with ease.

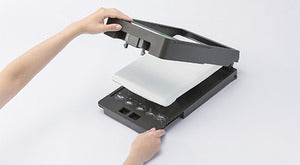

3. Pre-Press Insert the tray into the finisher to smooth out creases.
4. Print Printing takes approximately two minutes. Just load and unload the tray – it is that easy.
5. Fix the Design Use the finisher (with built in safety features) to fix the ink and lock in the design.

Set Up Instructions

1. Download the latest driver from the RICOH Website
2. Find the driver download button under the “Printer Driver” tab
3. Load the driver installation package
4. Agree to the license agreement
5. Select Add a new printer - press next
6. Select connect USB cable
7. Select next
8. Ricoh Design Software Installation
9. Download the latest RICOH Design Software and Driver from the RICOH Website
10. Find the software download button under the “Utility” tab
11. Select the language to be displayed
12. Read “read me” information and press [Next] to proceed
13. Select [Finish] when done

• Color Capable: IP Color Capable
• Maximum Image Area: A4 tray 11.5 x 8 in.; A5 tray 8 x 5.6 in.
• Print Head Technology: On-demand piezo inkjet system
• Resolution Settings: Speed: 600 x 600 dpi; Fine: 600 x 600 dpi; Vivid: 1200 x 1200
• Ink: Pigment ink. (with Ricoh standard files for yield, monthly PV = 200prints, including the ink amount for head cleaning)
• Printable Substrates: Fabric: 50 to 100% cotton; Media: T-shirt (from baby size to adult), tote bag,sweatshirt, polo shirts
• Operating Environment: 15°C (59°F) to 32°C (89.6°F), Humidity 15% to 80% RH
• Connectivity: USB 2.0 high speed, 10BASE-T/100BASE-TX, IEEE 802.11 b/g/n
• Supported File Types: TIFF, PNG, JPG, PDF, BMP
• Electrical Requirements: 100/240VAC* 50~60Hz, 2.0A max, Max 90 Watts usage
• Dimensions: 15.7 x 30 x 11.5 in.
• Weight: Less than 55.1 lb.
