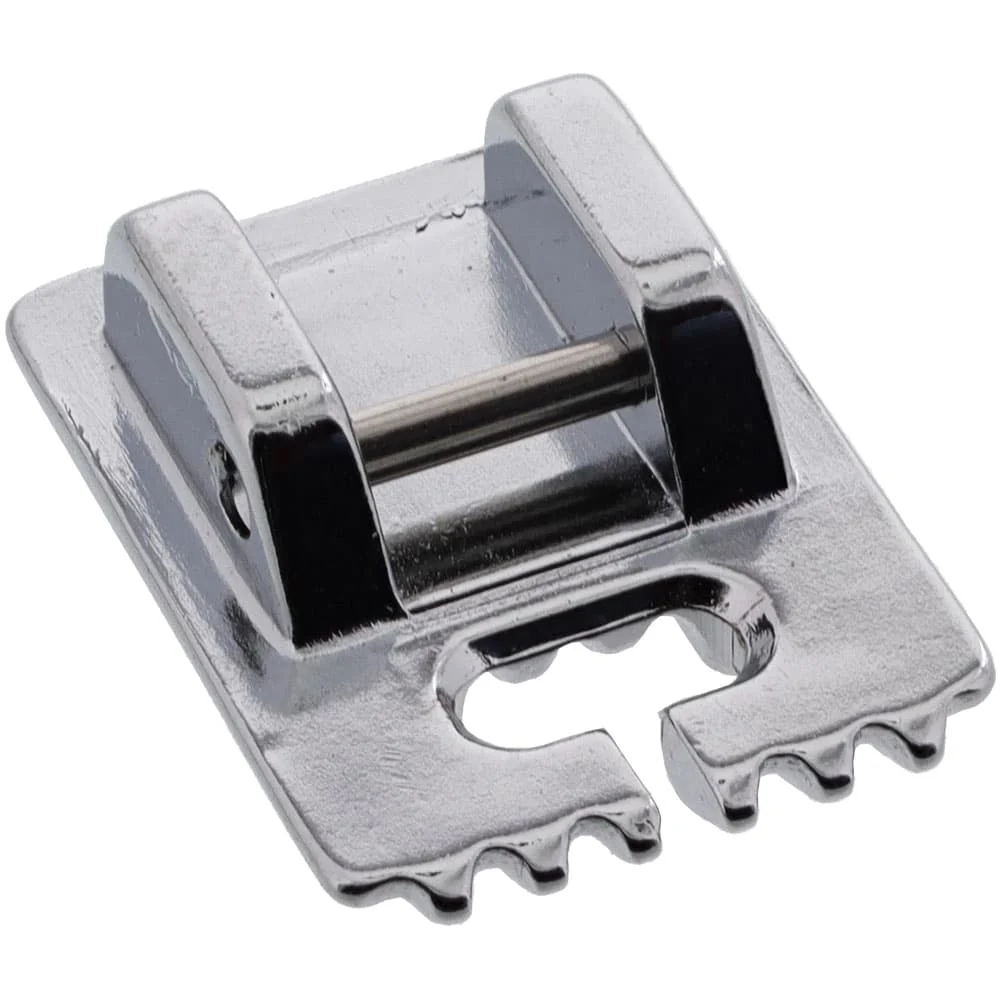

Universal Snap On 5 Groove Pintuck Foot 5011-15

The Pintuck Foot is perfect for creating eye-catching line designs on any project. Simply install a Twin Needle, feed your fabric through the foot, and watch as perfect pintucks form instantly. The parallel grooves ensure your tucks will always be accurately spaced and as close together or as far apart as you desire.

A Pintuck Foot can be used with or without cording. Thin cording (1/16) creates a bold and defined pintuck. When using cording with your Pintuck Foot, use a cording guide plate cover. This ensures your cording is feed directly into the foot center.

The number of grooves depends on the weight of your fabric. The heavier the fabric, the less grooves. The lighter the fabric, the more grooves. For instance, if you have a light weight sheer organza, go for a 9 groove Pintuck Foot. If you have a medium weight cotton, a 5 groove or 7 groove will work wonderfully. A 5 groove will give you maximum height on medium weight fabric, whereas a 7 groove will be a more delicate pintuck without as much height.

Compatible Machines

Brother

651, BM2800, BM2800CT, BM2800FG, BM3700, BM3700CT, BM3700FG, BM3850, BM3850CT, GS2700, GS2786K, GS3700, GS3710, GS3740C, Hanami 27s, Hanami 37S, LX2763, LX3850, RS40S, RS45S, Star 27S, Star 37S, XQ2700, XQ3700, XR46, XR53

Baby Lock

BL1108, BL2000, BL2200, BL2300, BL500

Janome

1017 Harmony, 1117S, 1580LX, 2003P, 2018S, 2039SN, 2041 Harmony, 2041LX, 2041NX, 2041S, 2141S, 2041SX, 2049LX, 2049NX, 2049SX, 2118S, 2139S, 2139N, 2149SX, 2206, 2212, 222A, 311, 3012, 3016, 3022, 3128, 360, 380, 381, 405, 415, 419S, 423S, 4612TM, 530, 531, 609, 609NH, 611, 618, 619, 620, 621, 623, 625(old), 625FA, 626, 630, 631, 632, 639(Jem), 640, 641, 642, 651, 656, 657, 657A, 661(Old), 680, 681, 681D, 684, 692, 693, 710, 7306, 7312, 763, 791FA, 793, 795FA, 802, 803, 844, 920, COMBI 10, FA772, HD1000, Hello Kitty Full Size 385.11706, HF3125, HF106, HF107, HF1012, HF2022, HF-RE1706, JA104, JA106, JA1502, JA1504, JA1506, JA1508, JA1510, JA1512, JA1518, JD1803, JA1804, JD1806, JD1810, JD1812, JD1814, JD1816, JD1818, JD1822, Jem Lite, JF1004, JF1012, JF1014, JF1018, JF1018S, JF1022, JR1012, JS1003, JS1004, JS1008LE, L108, L109, L110, L352, L353, L344, L352, L353, L372, L373, L392, L393, LR1612, LR1616, LR1618, LR1622, QS2250, RX18, RX18S, RX22, TB12

Kenmore

385.1011180, 385.1154180, 385.1155180, 385.1168280, 385.1168291, 385.1249180, 385.1254180, 385.12714090, 385.12814490, 385.1695180, 385.17622090

PFAFF

Hobby 307

Simplicity

SL1150
