SWF KX-15 15 Needle Single Head Commercial Embroidery Machine 20.47x14.17

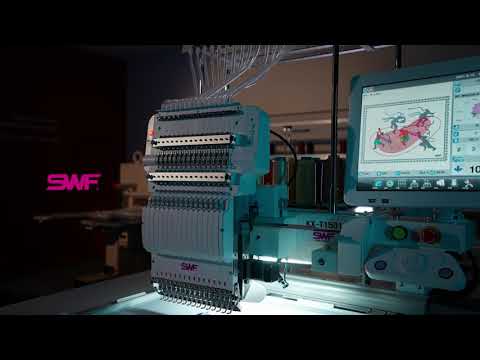

The SWF KX-T1501 is a cutting-edge single-head, 15-needle commercial embroidery machine from the innovative KX series, designed to transform embroidery for professional studios and home-based businesses. Compact yet powerful, it combines advanced technology with user-friendly features to deliver exceptional stitch quality at speeds up to 1,200 stitches per minute (SPM). Ideal for intricate multi-color designs, detailed logos, and large-scale projects, the KX-T1501 streamlines workflows and boosts productivity for both beginners and seasoned embroiderers.

Equipped with the Smart Tension System (S.T.S), the KX-T1501 automatically adjusts thread tension based on stitch type and machine speed, ensuring consistent, high-quality embroidery with minimal manual intervention. The Smart Action Presser Foot (S.A.P) adapts automatically to fabric thickness, enhancing stitch precision across diverse materials. Its 15.1" full-color touchscreen LCD panel offers intuitive navigation, while the slim cylinder bed design improves embroidery on challenging items like caps and small pockets. Backed by an industry-leading warranty, the SWF KX-T1501 is a reliable, high-performance investment for scaling embroidery operations with ease and precision.

Main Features

Smart Action Presser Foot (S.A.P)

• Smart Action Presser Foot (S.A.P) adjusts the height of the presser foot automatically by way of an independent presser foot motor.
• Adjust the minimum height of the presser foot using the switch button located on each head.
• Regardless of the thickness of the fabric, the best quality embroidery can be completed easily with S.A.P.
• Improves embroidery quality in thick applications, such as 3D volume work.

Smart Tension System (S.T.S)

• Smart Tension System (S.T.S) automatically adjusts the thread tension by analyzing the stitch type and machine speed.
• Produce consistently high-quality embroidery with S.T.S and reduce lost productivity in manual adjustment of thread tensions.

15.1" LCD Touch Panel

• Maximizes user convenience with easy monitoring of embroidery progress and simple operation.
• Allows hoop movement and thread trimming via button controls without screen touch via button controller.

Slim Cylinder Arm

• Redesign of the cylinder arm improves the quality of embroidering on products
• Reduction of the cylinder bed circumference to 170mm
• Reducing working space between the needle plate and cap frame.

Picker On / Off

• Both versions with Picker on/off options are available.
• Selecting the Picker off version allows you to get meaningful results.
• No need to replace the picker when it bends or snaps and easy to change the bobbin and bobbin case.

Quick Change (Q.C) Cap system

• Exclusive SWF Quick Change device maximizes efficiency in cap embroidery.

SWNS Program

• SWF “SWNS” (Sunstar World Networking System) allows you to network your SWF embroidery machines with a Wireless system.
• Send and download designs to and from your Embroidery machines via WiFi connectivity.
• Connect up to 200
  machines.
• Reduce machine down time and increase productivity.
• Enables production tracking, machine operation monitoring, error message alerts, embroidery status analysis, and design file transmission.

Machine Specifications

• Brand & Model: SWF/KX-T1501
• Number of Heads: 1 Heads
• Number of Needles: 15 Needles

• Power: 110v
• Operation Box: LCD Full Color Touchscreen Panel
• Design Input: USB
• Design Memory: 40 Million Stitches

• Stitching Length: 0.1 - 12.7mm

Max Speed

• 1,200 stitches per minute (Normal Embroidery)
• 1,000 stitches per minute (Cap Embroidery)

Embroidery Field

• Tubular 520 x 360mm / 20.47 x 14.17"
• Cap 360 x 75mm / 14.17 x 2.95"
• Border 520 x 360mm / 20.47 x 14.17"

Included Accessories

Quick Change Cap Frame Set

• Cap Frames (2PCS Per Head)
• Cap Frame Drivers (1PCS)
• Cap Frame Holder (1PCS)

Tubular Round Frame (2PCS Per Head)

• TRF 12 (4.25")
• TRF 15 (5.4")
• TRF 18 (6.6")

Tubular Square Frame (2PCS Per Head)

• TSF-30x30cm (12.3" x 12.3")
• TSF-45x44cm (16.6" x 17.1")
