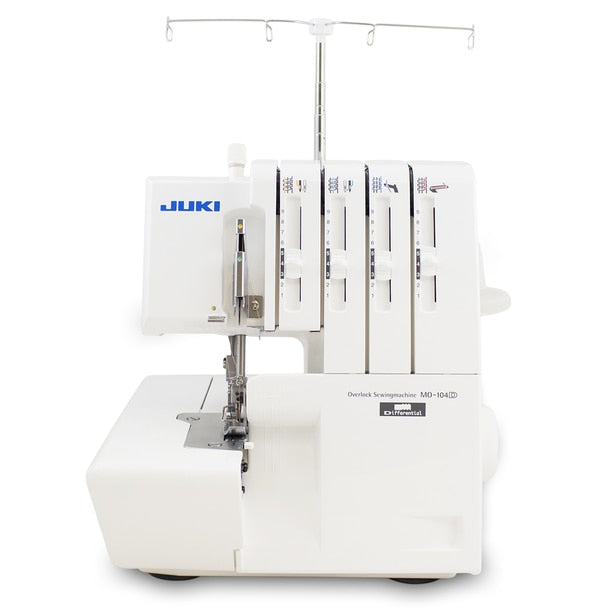

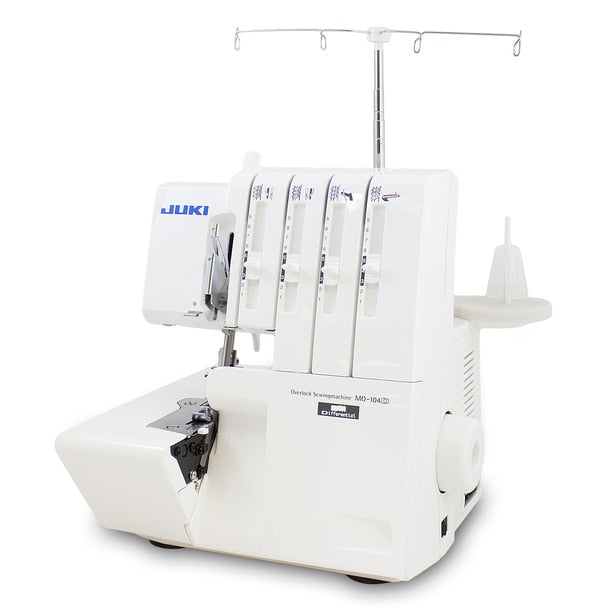

JUKI MO-104D Overlock Serger Machine

Also Available in Our Retail Store
Call for More Information or Special Promotions

Machine Manual

The compact, robust, and easy-to-operate JUKI MO-104D is an ideal complement to your sewing machine. Whether you are working with the finest silk and satin, denim, thick fleece or stretchy fabrics, the MO-104D will give you the sewing results you’ve always dreamed of. Additionally, the MO-104D’s 2, 3, and 4 thread option allows for narrow and hard-wearing seams on stretch and woven fabrics.

The MO-104D is a compact, 2/3/4-thread, 2-needle overlock and surging machine that offers a lot of bang for the buck. It does 15 different stitch patterns for all kinds of seams and hemming plus it stitches up to 1,00 SPM. It can sew stretchy knit fabrics using up to 4 threads to create tidy, yet strong seams that will stretch with the fabric. It can also make heavy duty seams for high-wear pieces, seams for items made from thicker fabrics, and finer seams for more delicate fabrics.

Like the best professional sergers, this personal model offers differential feed as well as adjustable stitch length and width to accommodate any type of fabric with each of its different stitches. The stitches will be precise and lay flat no matter what type of seam or hem is being sewn. All adjustments can be quickly and easily made using the simple control dials on the side of the machine.

Main Features
Up to 15 Stitch variations
Choose from 15 overlocking stitch variations with 2-, 3- and 4-thread stitch patterns for all types of fabrics.

Differential Feeds
Adjustable stitch length by simply turning the exterior dial on the right-hand side.

Wide Variety of Stitch Patterns
Sew both stretchy and knit fabrics with the 2/3/4 thread overlock with chain stitch and cover stitch, 3-thread narrow overlock, and 3-thread rolled hem.

Adjustable Stitch Length
Change the length of your stitch according to your project by simply turning the dial located on the exterior right-hand side within the range of 1 to 4mm.

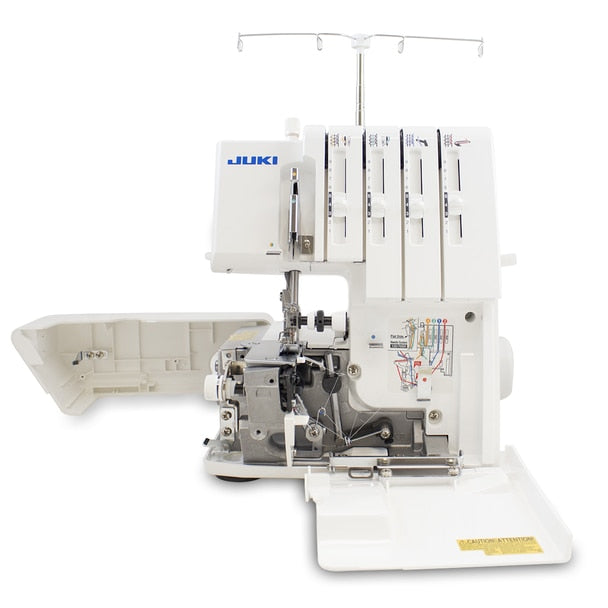

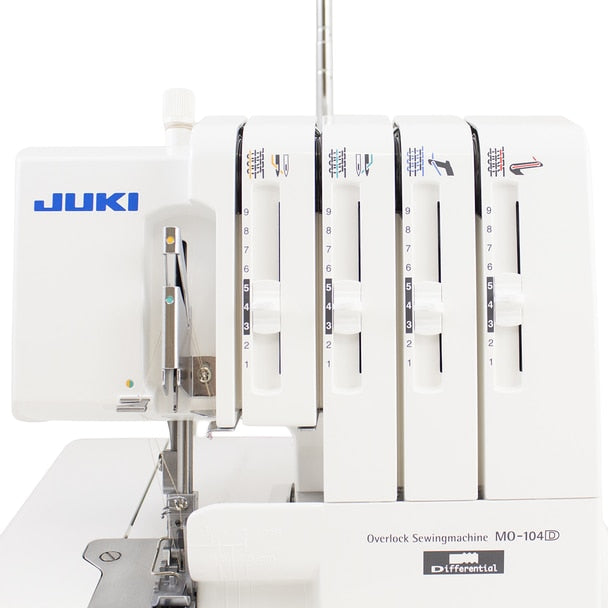

Lay-In Tension Slots: Thread easily and efficiently by following the color-coded thread paths on the tension slots.

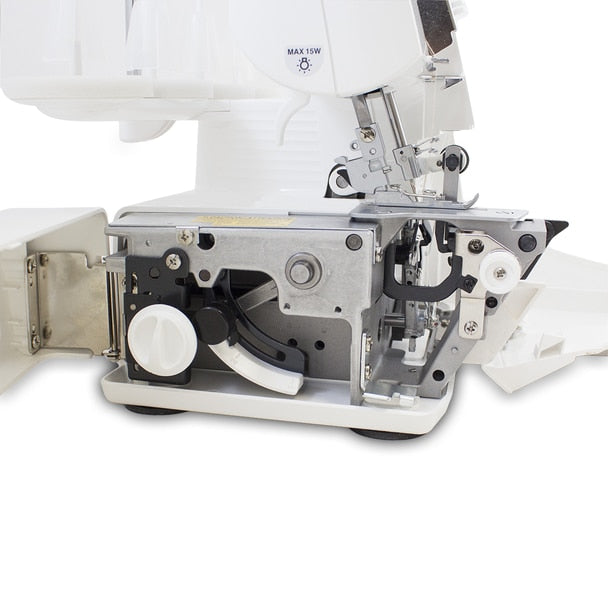

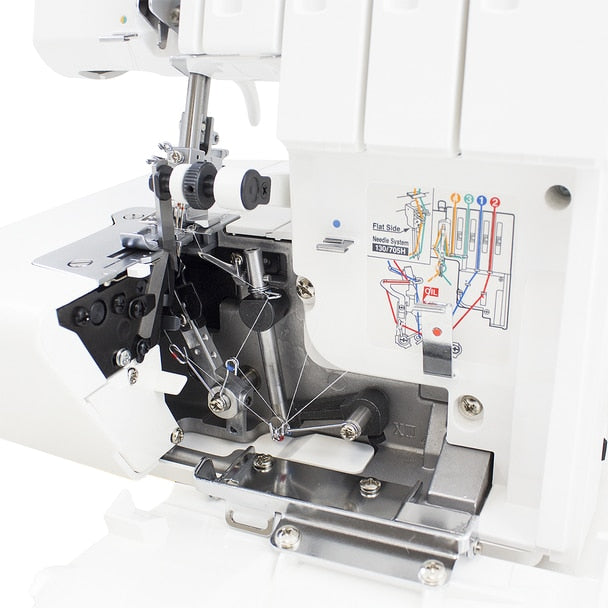

Lower Looper Threader
Slide the thread into the slot and snap the looper into place allowing for easy threading in seconds!

Automatic Rolled Hemming
Create quick and easy with built-in fingertip control.

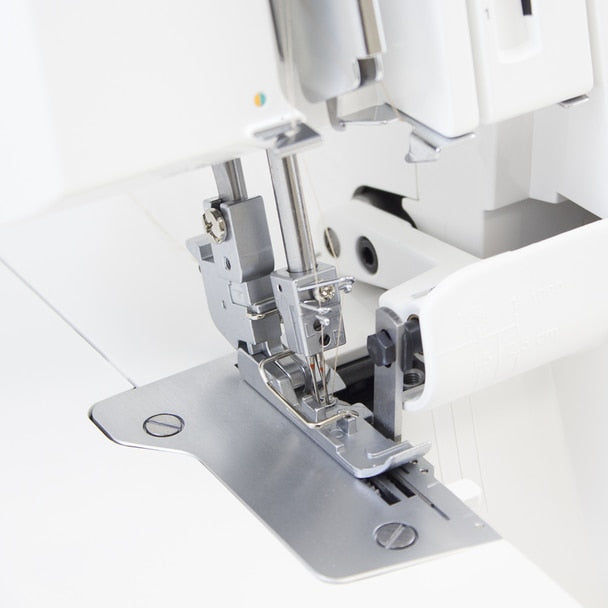

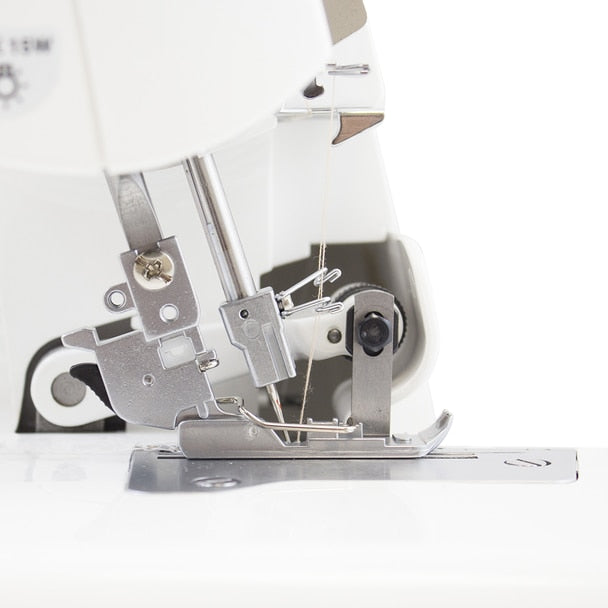

Presser Foot Pressure Adjustment
Ability to adjust the presser foot pressure according to the type of material being sewn.

Cutting Width
Create perfect seams and rolled edges by adjusting the cutting width with ease.
Bright LED Light: Brightens the needle entry area. The LED light will not heat up even during long hours of operation.

Basic Features

• Number of Threads: 2/3/4 Threads
• Maximum Stitch Speed: 1,500 spm
• Stitch Length: 1-4mm
• Differential Feed: 0.7-2.0 ratio

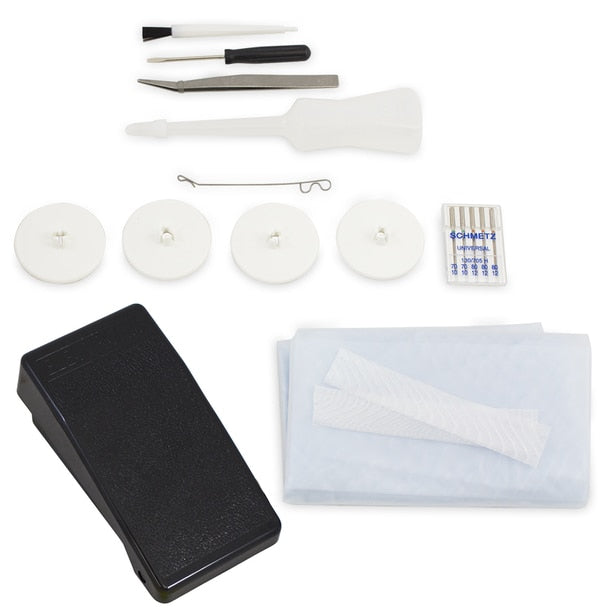

• Upper Looper Converter

• Standard Presser Foot (Part no. A1501-800-0A0)
• Head Vinyl Cover
• Spool Holder Discs (4 pcs)
• Screwdriver (small)
• Screwdriver (medium)
• Tweezers
• Oiler
• Lower Knife
• Needle Set
