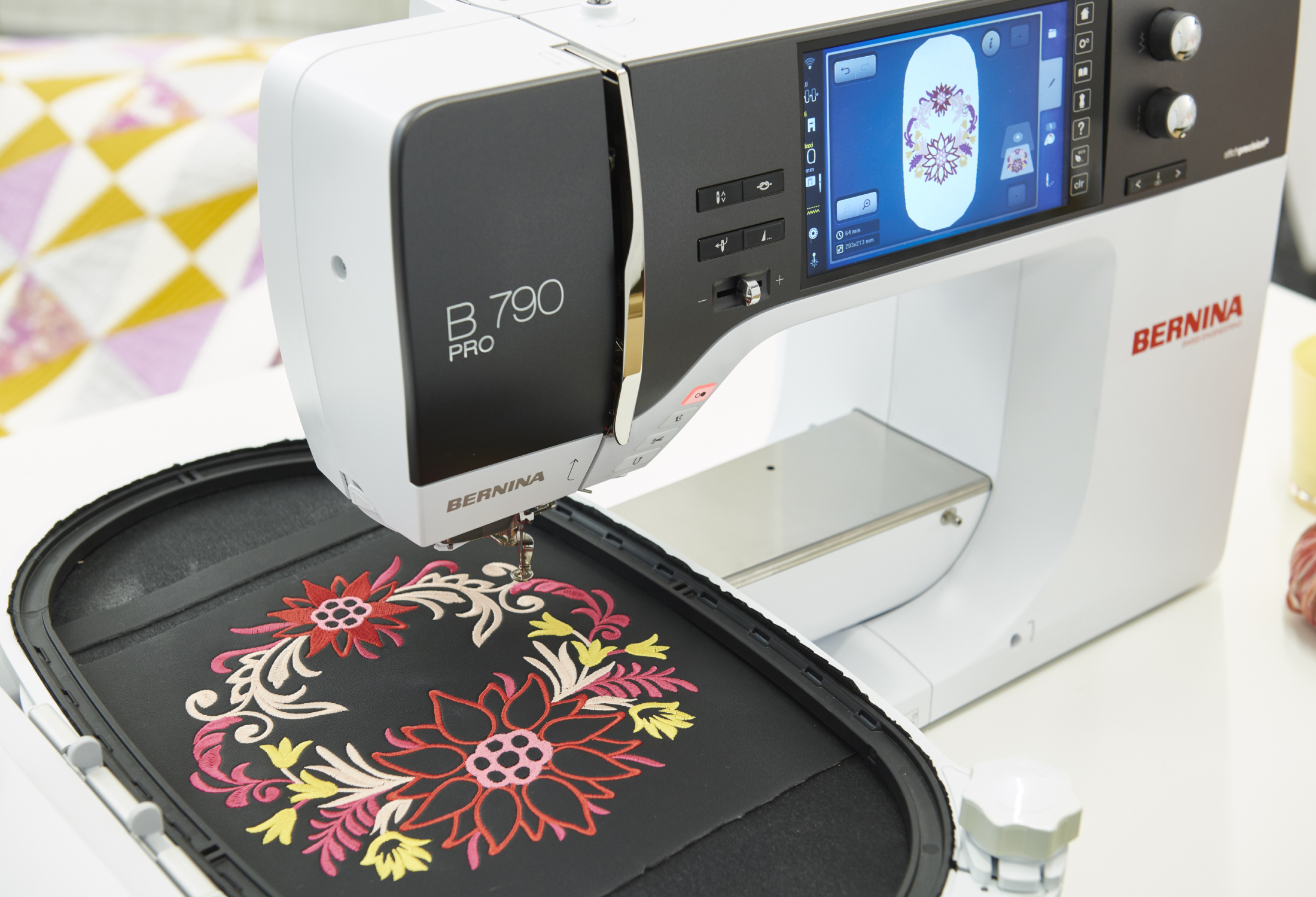

BERNINA 790E PRO Sewing and Embroidery Machine

Available Only in Our Retail Store
Call for More Information or Special Promotions

Machine Manual

Elevate your sewing, quilting, and embroidery to extraordinary heights with the BERNINA B790E PRO Sewing and Embroidery Machine. This exceptional machine introduces a new realm of innovation with advanced features like the BERNINA Pinpoint Laser, which allows for precise positioning and alignment. With the 4-Point Placement system, you can effortlessly place your designs exactly where you want them. Stay connected and take advantage of WiFi Connectivity to easily transfer designs and access online resources. The B 790 PRO is enriched with a range of exciting new features for sewing, quilting, and embroidery, and it boasts the cutting-edge stitchprecision2 Technology, empowering you to have complete control over every stitch. This technology ensures unparalleled precision, resulting in flawless and impeccable results every time you create. Let your creativity flourish with the BERNINA B790E PRO, a machine that opens up a world of endless possibilities and allows you to achieve perfection with every stitch.

Main Features
Precise like a PRO!

• Next generation stitch precision
• Even faster embroidery
• Superior stitch quality

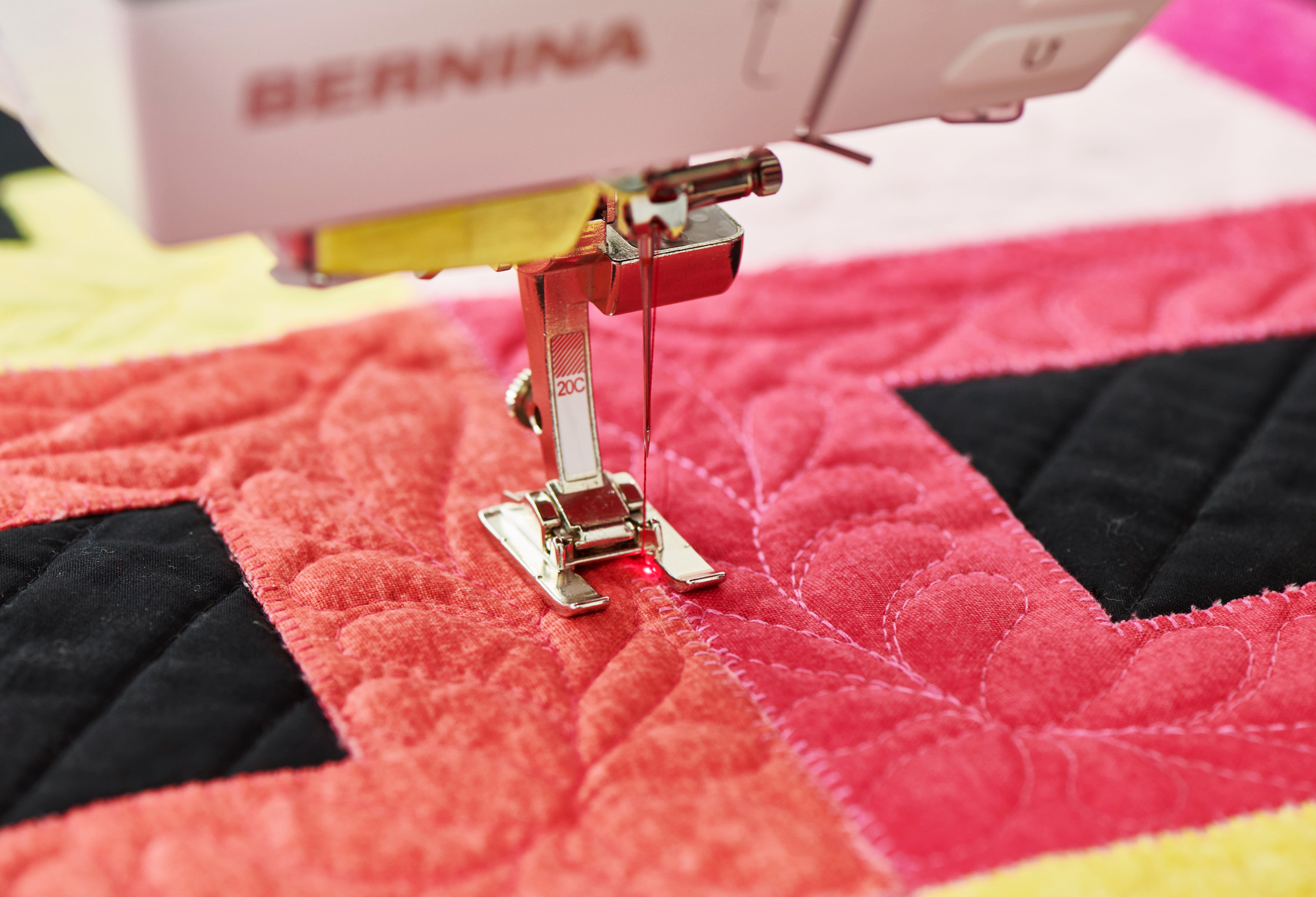

Pinpoint Laser

• Works in every needle position
• Indicates the exact needle entry point
• Next generation precision

Thread the needle automatically

• You are ready for sewing in a breeze
• Simply push a button
• Watch the machine thread the needle

Place your designs to suit your project

• Define four points on the fabric
• Place the design proportionally
• Or morph to fit within the boundary

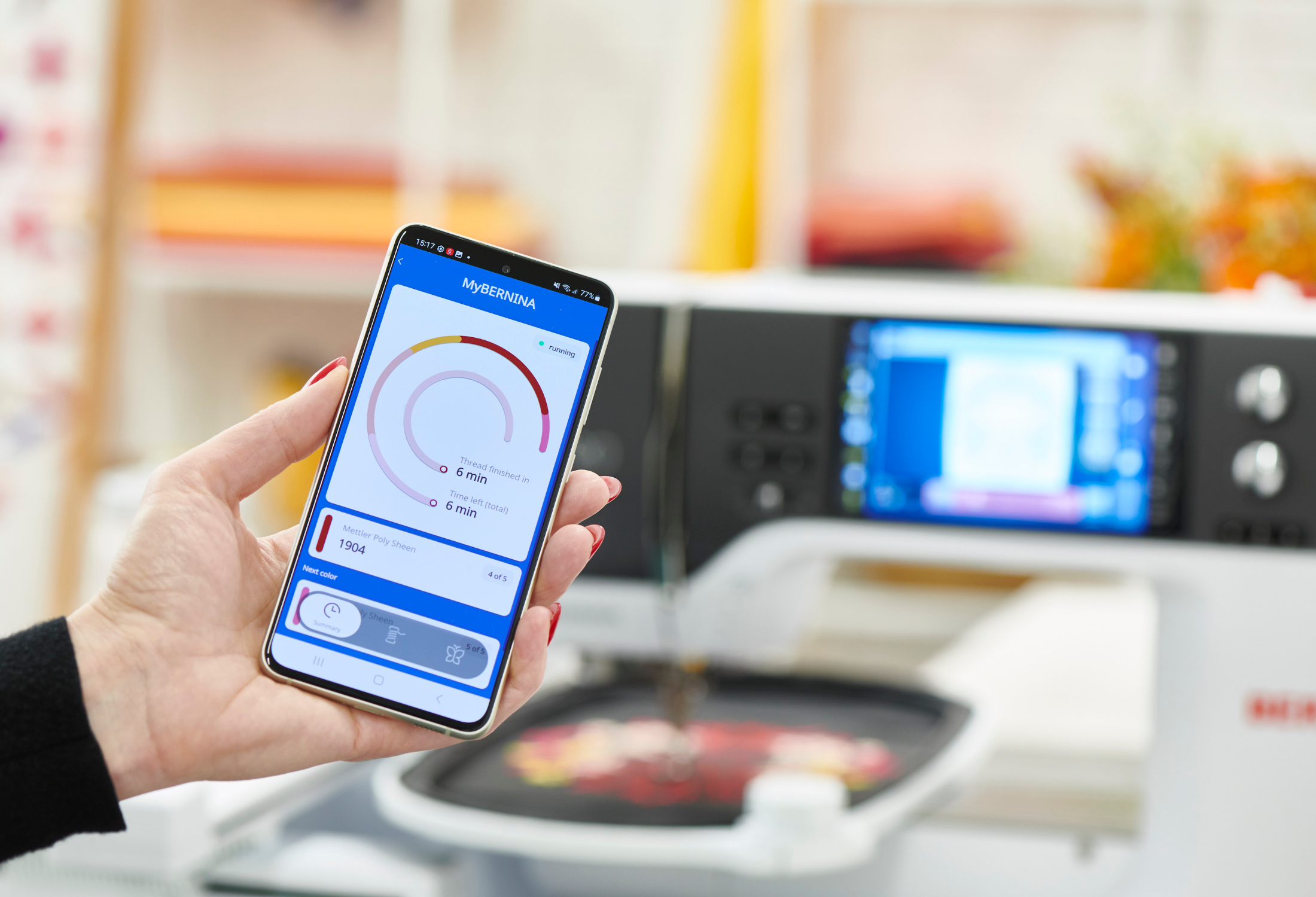

Monitor your embroidery from your smartphone

• With the BERNINA Stitchout App
• Real-time status updates remotely
• Transfer designs from or to your V9 software

Customizable Quilt Designs

• Quilt like a PRO
• Modify stitches per inch
• Unlimited scaling

Create your individual stitch

• ...with the Stitch Designer
• Edit existing stitch patterns
• Easily move the stitch points with the multi-function knobs

Create your own stitches by drawing your ideas right on the touch screen. With a touch or turn on the multi-function knobs, the B 790 PRO turns your design into a stitch pattern or alters existing stitches as you wish. Save your very own stitch creations to expand your stitch library.

A screen beyond imagination

• Extra large 7" color touch screen
• Easy navigation with large symbols
• Centrally & optimally located

The extra large touch screen allows you to operate the machine comfortably. Get direct tips and tricks or have short built-in tutorials show you important work steps.

HAVE A LOOK IN THE 360-DEGREE VIEWER

• Align designs as you wish
• Both horizontally and vertically
• Center, left, right, top, bottom
• Align multiple lettering lines

Easily align and distribute embroidery designs horizontally and vertically. Use Multi-line Lettering and Text Alignment to personalize your text placement. With the line break, lettering of up to 10 lines is possible.

You imagine it. You shape it.

• Combine default formations
• Arrange embroidery patterns
• Any formation is possible

Multiply designs with one click and arrange them in a desired formation. Whether in a circle, square or heart, with the integrated Shape Designer new and unique embroidery designs emerge.

More editing possibilities

• Embroider endlessly
• Group & ungroup designs
• Rearrange designs

Undo or redo steps while editing or combining designs to return to your initial position. Change the stitchout sequence of design layers or use Rearrange in combination with Group & Ungroup for further editing possibilities. With the Endless Embroidery function, you can easily repeat and align embroider designs to make continuous borders.

Smart embroidery technology even smarter

• Perfect becomes superb
• Another increase in embroidery speed
• Even better stitch quality

Thanks to the BERNINA stitchprecision2 Technology, the already enhanced BERNINA Embroidery Module with Smart Drive Technology (SDT) is even faster and the stitch quality even more superior.

Love the BERNINA innovations

• Achieve finest stitching results
• Stitches are kept consistent
• Assistance with free-motion sewing

The BERNINA Adaptive Thread Tension provides ideal thread tension for each and every stitch type, in any variation. The included BERNINA Stitch Regulator foot assists you with free-motion sewing and quilting with a straight or zigzag stitch, ensuring stitches of the exact same length even at variable sewing speeds.

Sew any material like a PRO

• Enjoy superb fabric feed
• Optimum visibility while sewing
• Easy engaging

The BERNINA Dual Feed tames hard-to-manage fabrics providing superb fabric feed and optimum visibility while you sew. Easy to engage when needed, the BERNINA Dual Feed tucks completely out of the way when it’s not required.

Jumbo bobbin

• Ideally suited for decorative stitches
• Sew & embroidery for longer periods of time
• More time for your creativity

The BERNINA Hook sews high-precision stitches up to 9 mm in width with speeds up to 1,000 stitches per minute. The bobbin holds 70% more thread than standard bobbins.

 Basic Features

• Maximum sewing speed (stitches per minute) 1000

• Sewing space to the right of the needle 10”

• Color touch screen 7” / 18 cm

• Drag & Drop

• LED sewing lights 30 LED

• Multi-function knobs

• Needle positions 11

• Sewing in each needle position

• Number of spool holders 2

• Fully-automatic needle threader

• Automatic presser foot lift

• Adjustable presser foot pressure

• BERNINA Pinpoint Laser

• WiFi Connectivity

• BERNINA Stitchprecision2 Technology

• Automatic presser foot pressure

• Manual thread cutter 3

• Automatic thread cutter

• Pivot / hover function

• BERNINA Dual Feed (BDF)

• Adaptive Thread Tension

• Upper thread indicator

• Lower thread indicator

• BSR functionality, straight stitch and zigzag

• BSR 3 mode (basting)

• BERNINA foot control with back-kick function

• Create and save stitch combinations

• Memory (short-term/altered stitches)

• Memory (long-term/altered stitches)

• Start/stop button (stitching without foot control)

• Slide speed control

• Bobbin winding while sewing/embroidering

• USB interface for PC connection

• USB interface for USB data stick

• Changing stitch settings while sewing

• Needle stop up/down

• On-screen help

• Creative consultant

• Sewing tutorial

• Embroidery tutorial

• Personal program

• History function (most-recently-used stitch patterns)

• Setup program

• Eco Mode

Sewing and Quilting Features

• Pattern start/end function
• Elongation
• Stitch length maximum in mm 6
• Maximum stitch width in mm 9
• Programmable Securing Function
• Stitch Designer
• Pattern mirroring
• 360° directional sewing
• Free Hand System (FHS)
• Sideways motion feed
• Number of stitch patterns (incl. alphabet) total 2040
• Connecting stitches
• Utility stitches total 38
• Buttonholes (incl. eyelet) total 15
• Automatic buttonhole length measuring system
• Automatic buttonhole
• Manual multi-step buttonhole
• Button sew-on program
• Darning programs 2
• Decorative stitches total 700
• Decorative sideways motion stitches 139
• Quilting stitches total 70
• Tapering/skyline stitches 28/30
• Sewing alphabets 9
• Monograms (with sideways motion)
• Reverse sewing

Embroidery Features

• Maximum Embroidery Speed (Stitches per minute) 1000
• Built-in embroidery designs 500
• Embroidery alphabets 25
• Customizable Quilt Designs (.bqm files) 76
• Maximum Embroidery Area 15.7" x 8.3"
• Freearm Embroidery
• On-screen Editing of Designs
• Duplicate/Add Designs
• Change Design Size Non-Proportionally
• Align/Distribute embroidery designs
• Multi-line Lettering and Align
• Move, Rotate, and Mirror
• Endless Embroidery
• Shape Designer
• Color Wheel
• QWERTY Keyboard
• WordArt
• Drag and Drop
• Absolute Check Design Positioning
• 4-Point Placement with Morphing
• Pinpoint Placement
• Scale Size of Embroidery Design
• Check Design Size
• Group/Ungroup
• Rearrange designs
• Undo/Redo
• Adjust Stitch Density
• Change Stitch Type
• Change Thread Brand
• Basting
• Color Resequence
• Stitch Design as Single/Multi-Color
• Personal Memory for Saving Embroidery Designs
• Programmable Jump Stitch Cutting
• Smart Secure
• Invisible Secure
• Centering the Embroidery Design
• Thread Away Mode
• Switch Unit of Measurement
• Creative Consultant Embroidery
• Embroider Sewing Stitches
• Embroidery design formats EXP, DST, PES, PEC, JEF, SEW, PCS, XXX
• BQM Format Reading
• Adjust Stitches Per Inch (BQM)
• Direct Design transfer to/from BERNINA Embroidery Software 9 via WiFi
• USB Interface
• Automatic hoop recognition
• View Stitch-out Time, Thread Colors, Size, Stitches
• BERNINA Stitchout App compatible
• Stitch Sequence Control
• Position Recall
• Jumbo hoop functionality (embroidery field: 400×260 mm, 15.7”×10.2”)

Dimensions

• Machine weight 30.9 lb
• Machine size 20.5″ / 8.4″ / 14.1″
