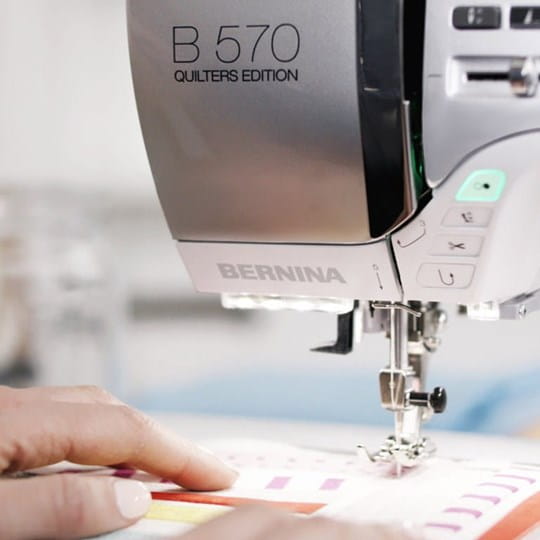

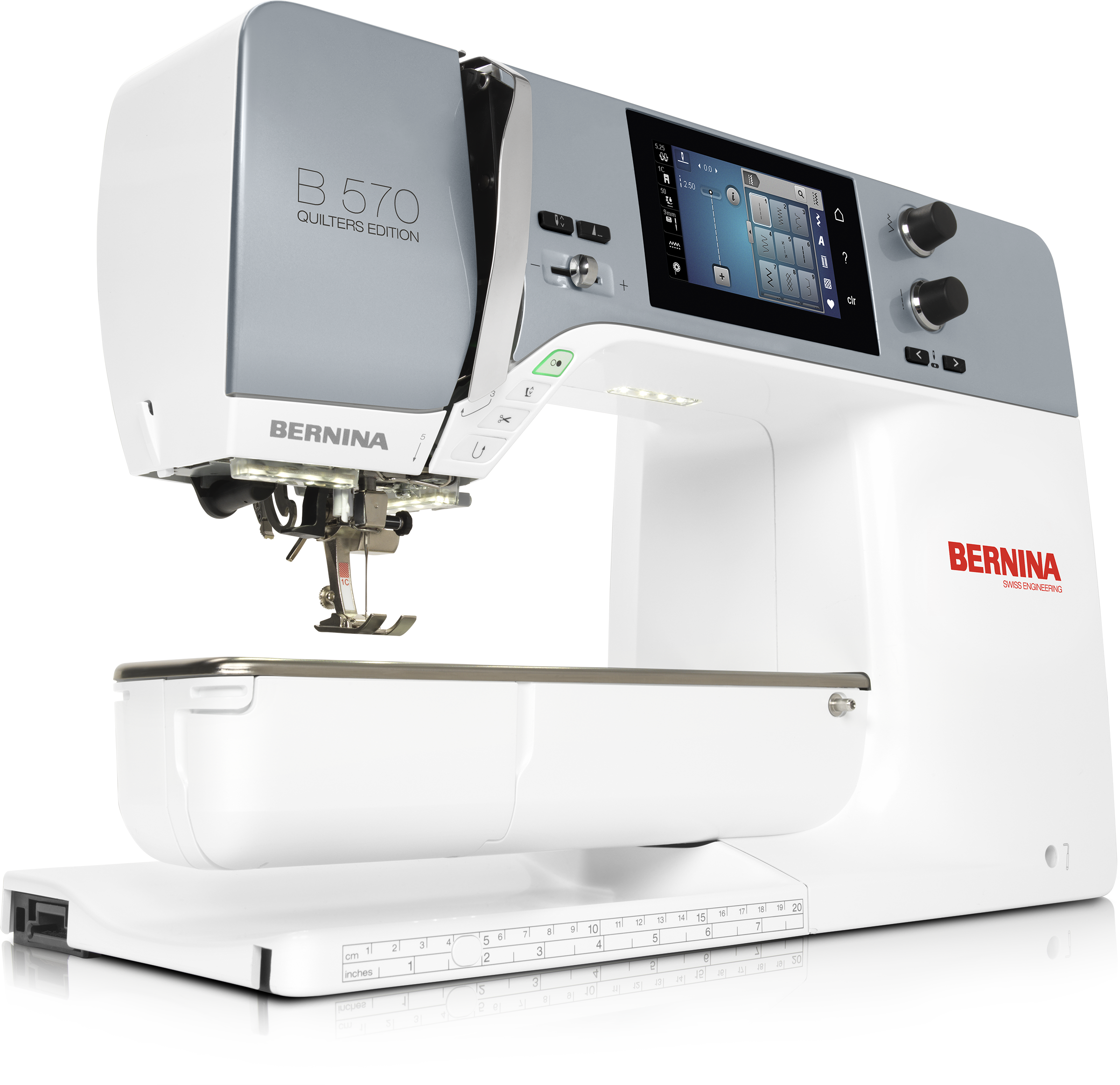

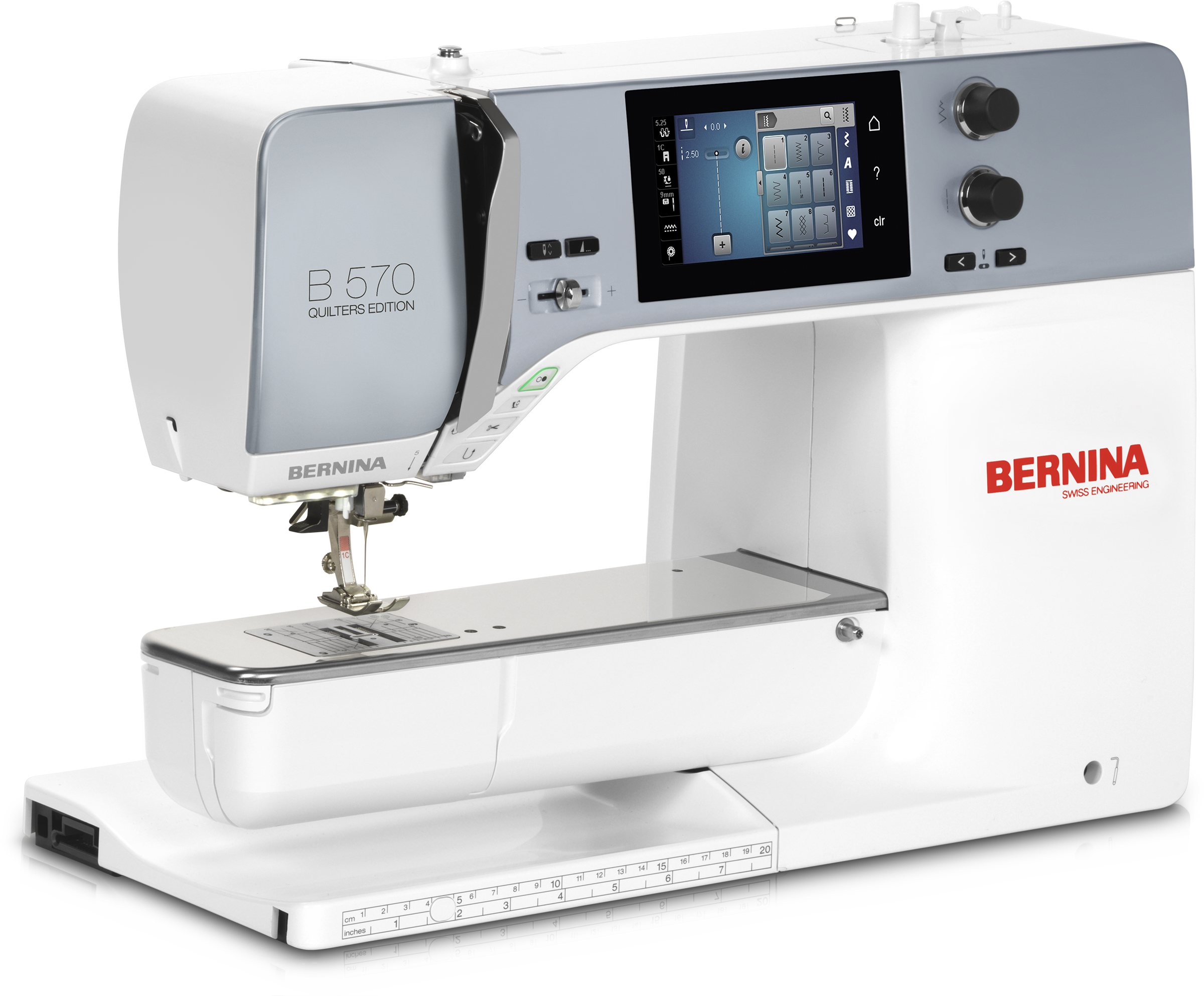

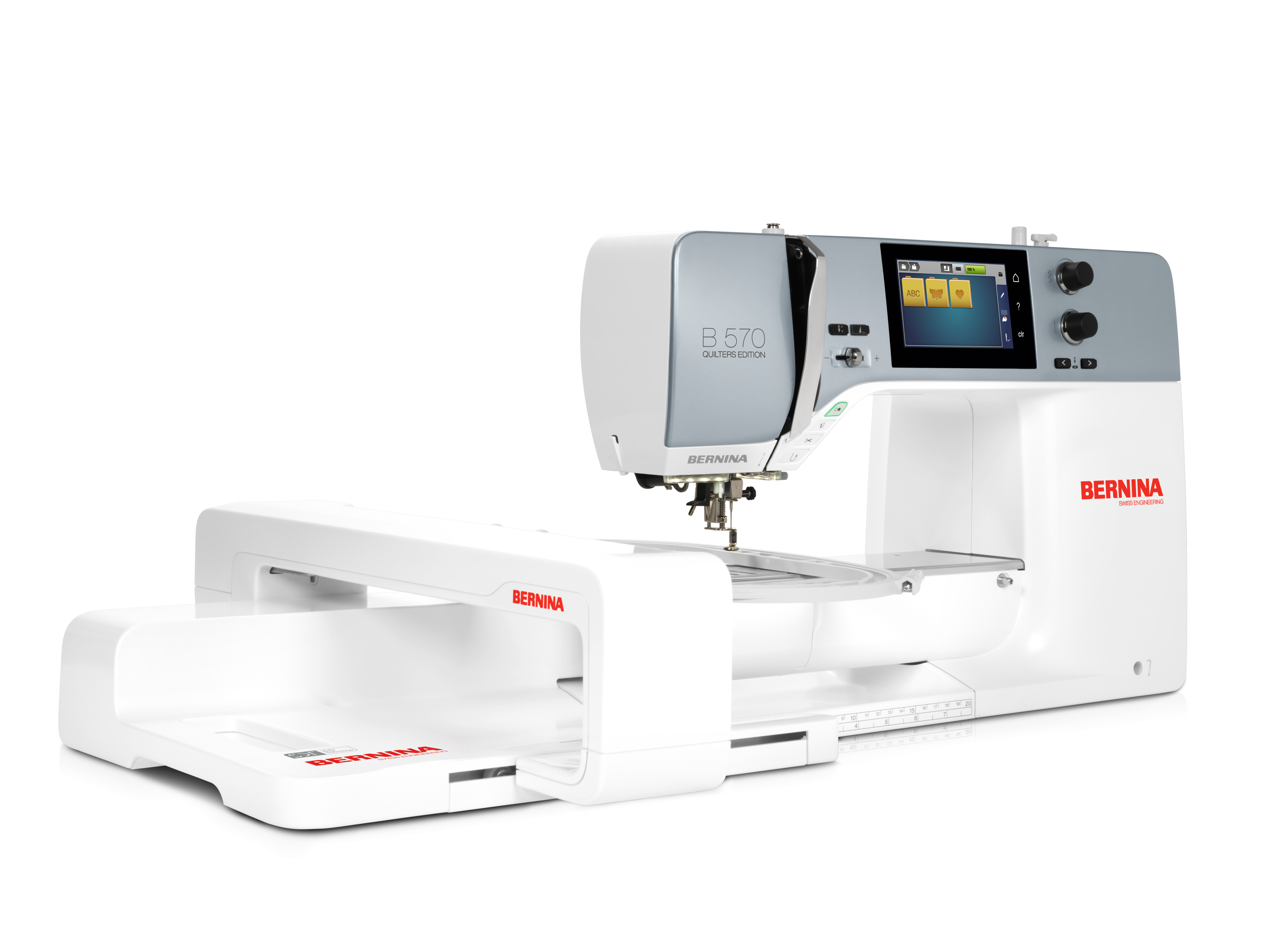

BERNINA 570 Quilter's Edition Sewing and Embroidery Machine

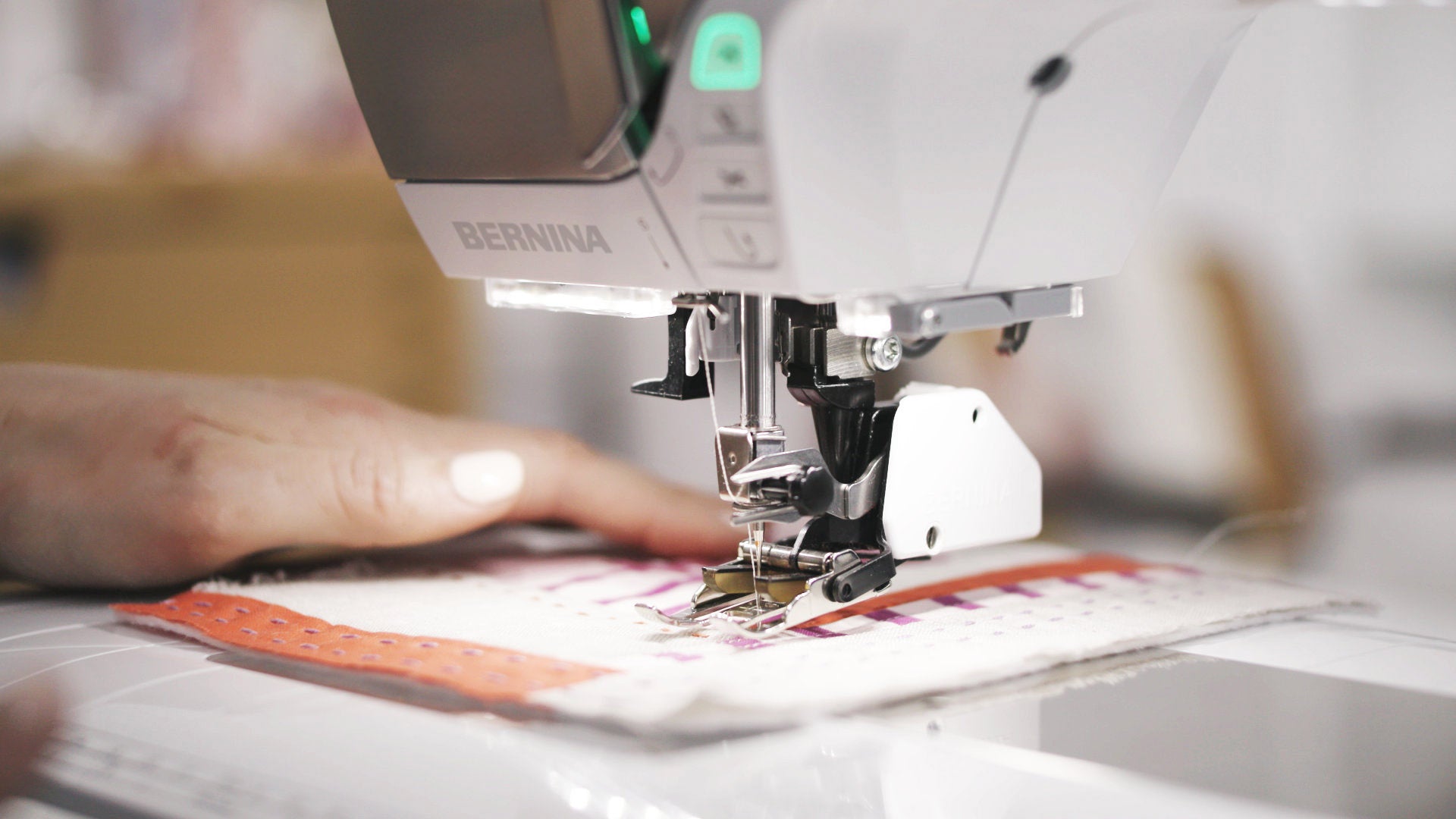

Keep Your Hands on the Fabric

• Adjust your quilt safely
• Tiny adjustments can be done quickly
• Rotate, turn & do appliqués easily

Thanks to the hover function the foot raises, but the needle stays in the fabric, making it easy to maneuver and turn as you appliqué and quilt.

BERNINA Stitch Regulator Functionality

• Perfection in free-motion sewing
• Automatic regulation of the stitch length
• Use with BERNINA Stitch Regulator (BSR)

The BSR functionality is integrated in the machine, the BERNINA Stitch Regulator (BSR) is an optional accessory. It ensures stitches of exactly the same length at variable sewing speed.

Enough Space for Bigger Projects

• Handle big quilts with ease
• Live up to your quilt creativity
• Enough room for comfortable quilting

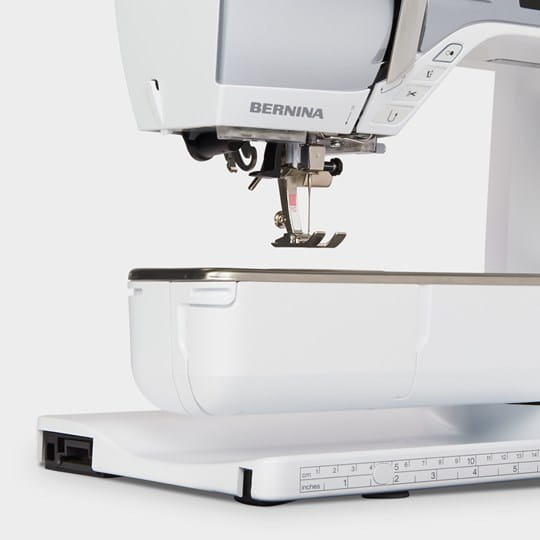

The B 570 QE with its extended freearm offers 8.5" right of the needle. Perfect to handle big quilting projects with the greatest of ease.

Quilt All Materials with Ease

• Enjoy superb fabric feed on both sides
• Quilt many layers without puckers
• Excellent for slippery or fine materials

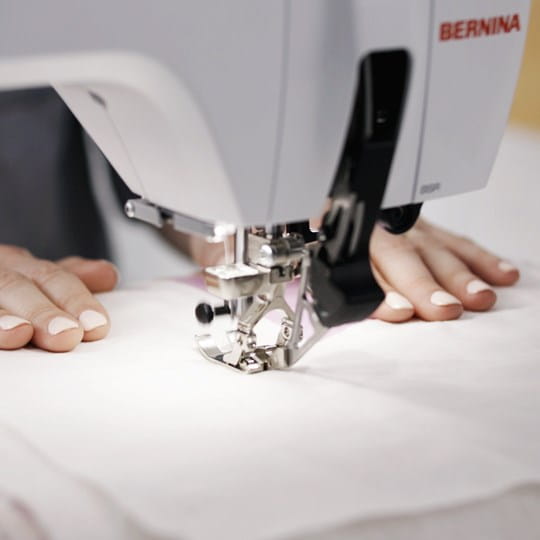

The innovative BERNINA Dual Feed feeds the fabric evenly from above and below. It is easy to engage and tucks away when not in use.

Automatic Features Save Time

• Thread is cut automatically
• Save time for your creative ideas
• More time to focus on your quilt

Thanks to the automatic thread cutter, your thread is cut with an easy one-button operation. Keeps your work flowing easily and saves time.

Basic Features

• Hook system BERNINA Hook
• Sewing space to the right of the needle 8.5”
• Color touch screen 4.3” / 10 cm
• Adjustable presser foot pressure
• Pivot / hover function
• BERNINA Dual Feed (BDF)
• Lower thread indicator
• Programmable BERNINA foot control
• Start/stop button (stitching without foot control)
• 9mm Maximum stitch width
• Embroidery Module Optional
• Maximum Embroidery Area 15.7" x 5.9"

Sewing/Quilting Features

• Pattern start/end function
• Triple Stitch
• Pattern end programmable
• Elongation
• Stitch length maximum in mm 6
• Maximum stitch width in mm 9
• Pattern mirroring
• Free Hand System (FHS)
• Number of stitch patterns (incl. alphabet) total 1450
• Utility stitches total 34
• Buttonholes (incl. eyelet) total 16
• Automatic buttonhole length measuring system
• Automatic buttonhole
• Manual multi-step buttonhole
• Button sew-on program
• Darning programs
• Decorative stitches total 450
• Quilting stitches total 73
• Cross-stitch programs 34
• Sewing alphabets 8
• Reverse sewing

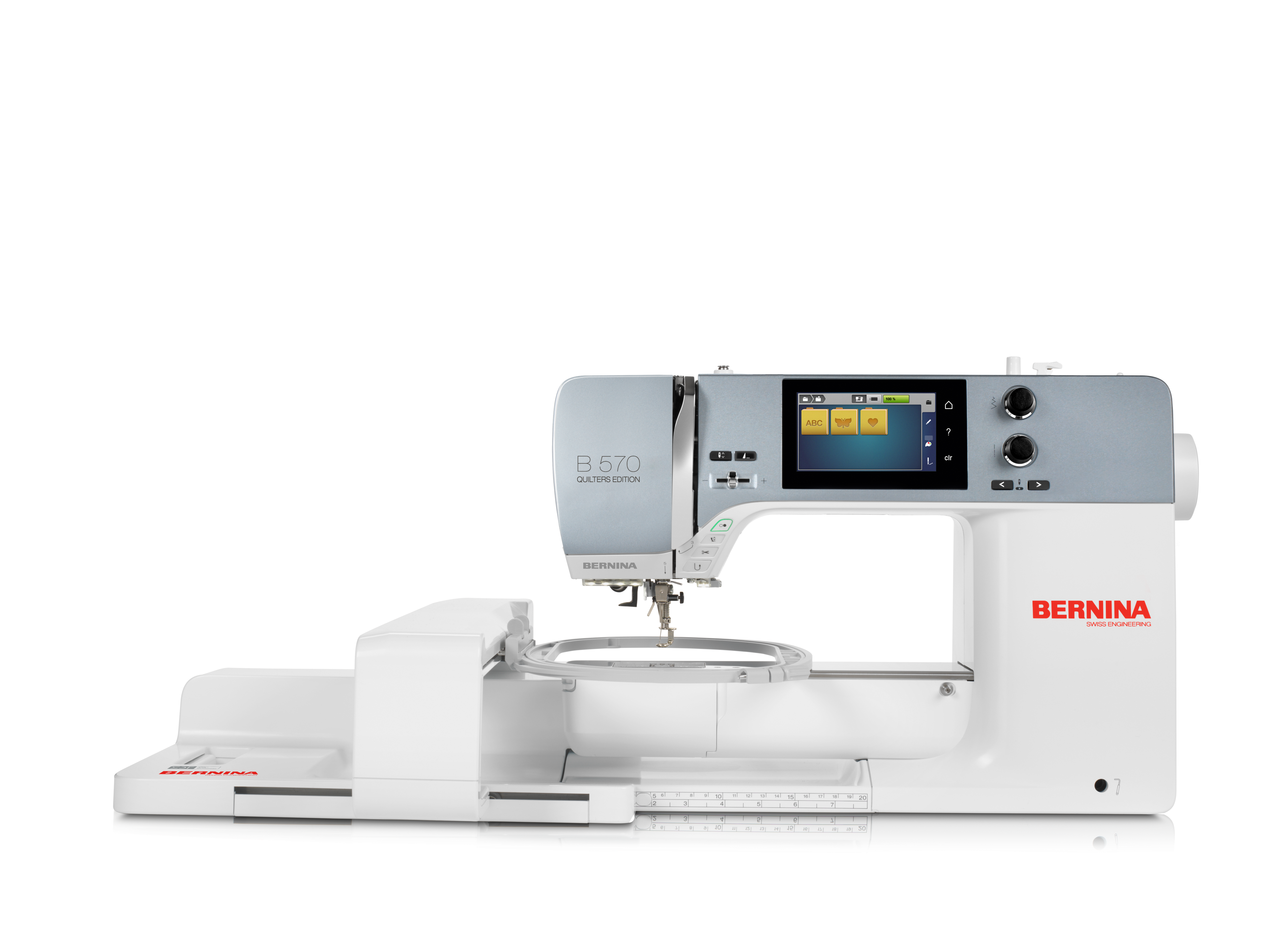

Embroidery Features

• Built-in embroidery designs 250
• Embroidery alphabets 7
• Embroidery Module opt.
• Maximum Embroidery Speed (Stitches per minute) 1000
• Maximum Embroidery Area 15.7" x 5.9"
• Freearm Embroidery
• On-screen Editing of Designs
• Duplicate/Add Designs
• Change Design Size Non-Proportionally
• Move, Rotate, and Mirror
• WordArt
• Drag and Drop
• Absolute Check Design Positioning
• Check Design Size
• Adjust Stitch Density
• Change Stitch Type
• Change Thread Brand
• Basting
• Color Resequence
• Stitch Design as Single/Multi-Color
• Personal Memory for Saving Embroidery Designs
• Programmable Jump Stitch Cutting
• Smart Secure
• Invisible Secure
• Centering the Embroidery Design
• Thread Away Mode
• Switch Unit of Measurement
• Embroidery design formats:
  • EXP
  • DST
  • PES
  • PEC
  • JEF
  • SEW
  • PCS
  • XXX
• USB Interface
• View Stitch-out Time, Thread Colors, Size, Stitches
• Stitch Sequence Control
• Position Recall

Standard Accessories

Standard accessories for the BERNINA 570 Quilter's Edition including bobbins, needles, screwdrivers, spool caps, etc.

Reverse Pattern Foot #1C

Reverse Pattern Foot #1C is the ideal presser foot for sewing forward and reverse-feed utility and decorative stitches.

• For forward and reverse-feed stitches
• For materials such as cord, denim and wool
• Guarantees excellent fabric feed

Reverse Pattern Foot #1D

Reverse Pattern Foot #1D is the ideal presser foot for sewing forward and reverse-feed utility and decorative stitches.

• For forward and reverse-feed stitches
• For materials such as cord, denim and wool
• Guarantees excellent fabric feed

Overlock Foot #2A

Overlock Foot #2A lets you neaten seams easily and sew high-quality hems, waistbands and overlock seams on knit fabrics.

• Serging
• Neatening edges
• For elastic and stretch materials
• Creates a flat, elastic seam

Buttonhole Foot with Slide #3A

Buttonhole Foot with Slide #3A determines the desired buttonhole length for identical buttonholes via a sensor.

• Sewing any number of buttonholes of exactly the same length
• Flexible choice of buttonhole length up to 30 mm
• With or without cording

Zipper Foot #4D

Thanks to its narrow, centrally positioned toe,  Zipper Foot #4D can stitch very close to the zipper coils, allowing it to sew the zipper on neatly.

• For accurately sewing in zippers of all sizes

Open Embroidery Foot #20C

Open Embroidery Foot #20C is ideal for embroidering with your sewing machine. The indentation in the sole of the presser foot allows it to glide smoothly over dense stitches.

• Perfect for sewing decorative stitches
• Creation of attractive appliqué designs
• Allows lines and patterns to be followed precisely
• An open form for a clear view of the project

Patchwork Foot #97D

The Patchwork Foot #97D is the special accessory for the most accurate feeding and stitching when piecing patchwork blocks.

• For patchwork projects with seam allowances of 3 mm (1⁄8”), 6 mm (¼”) and 7.5 mm (1/3“)
• Three notches on the side for precise guidance

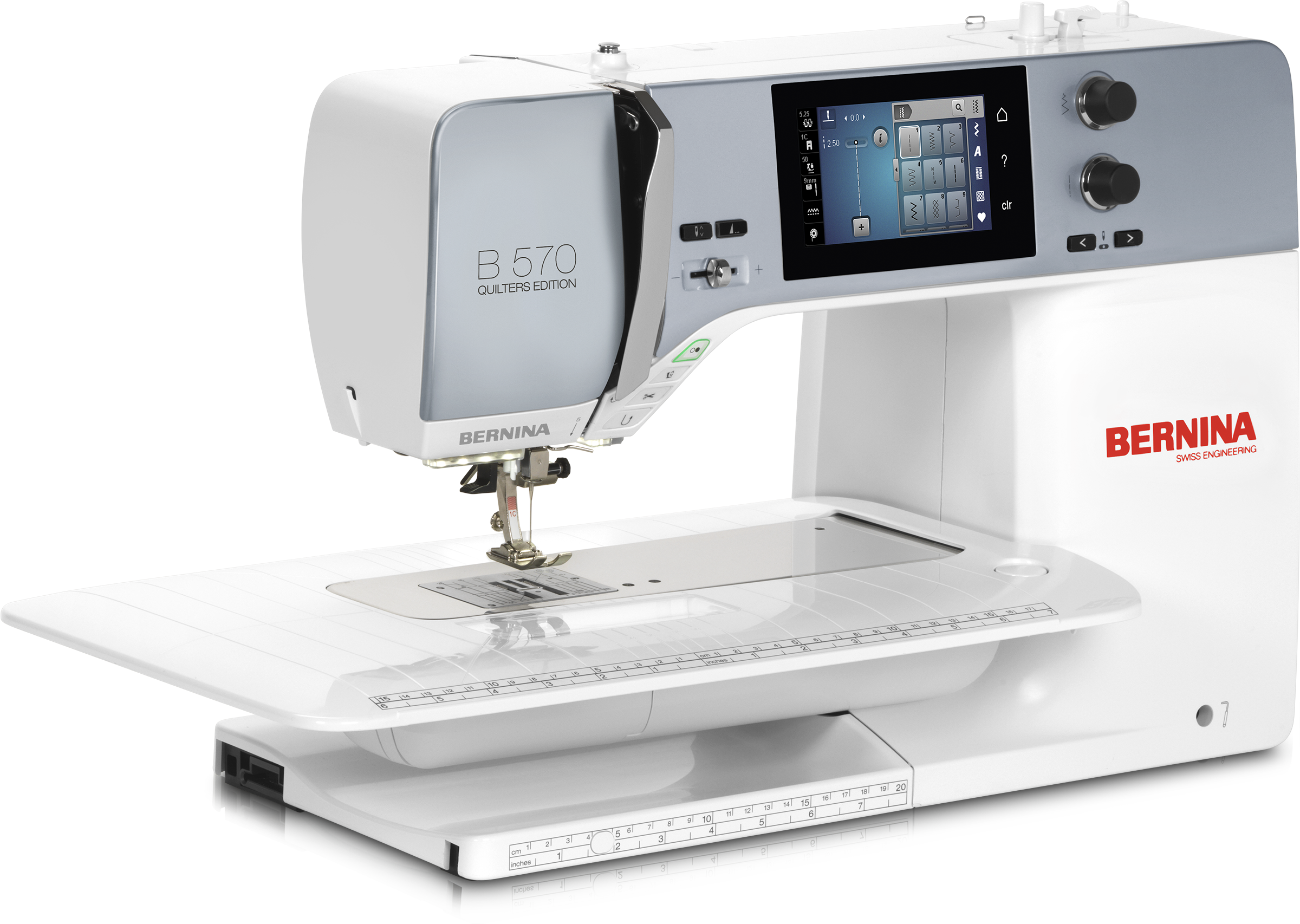

Freearm Slide-on Table

The BERNINA Freearm Slide-on Table offers greater comfort thanks to an increased sewing area, without affection free-arm function with sewing.

• Increases the work area
• Makes it easier to work on complex projects
• Special shape ensures freearm function

Knee Lifter/Free Hand System (FHS)

The Knee Lifter/Free Hand System (FHS) lets you raise the presser foot and lower the feed dog with your knee. Recommended particularly for applique or any project requiring pivoting and getting bulky projects under the presser foot easily.

• Simultaneous lifting of the presser foot
• And lowering of the feed dog
• Convenient operation with the knee
• Hands remain free to work

Touchscreen Pen

The Touchscreen Pen is ideal for working on the touch screens of BERNINA sewing and embroidery computers. Operate the touch screen by gently tapping it.

• For easy operation of the touch-sensitive screen
• Screen stays clean - no fingerprints

Sewing Machine Oil

BERNINA Accessory Box

This practical accessory box can be used to store all of your sewing accessories, such as presser feet, needles, and bobbins. The accessory box is supplied without contents.

• Practical storage box
• Accessories always at hand
• Place the box on your sewing table
